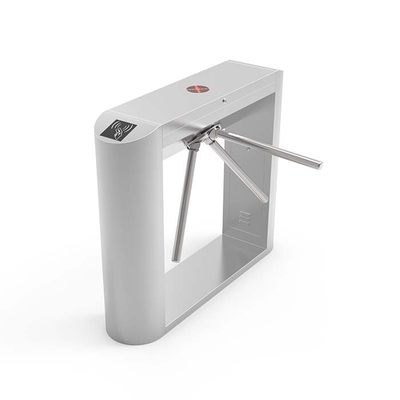

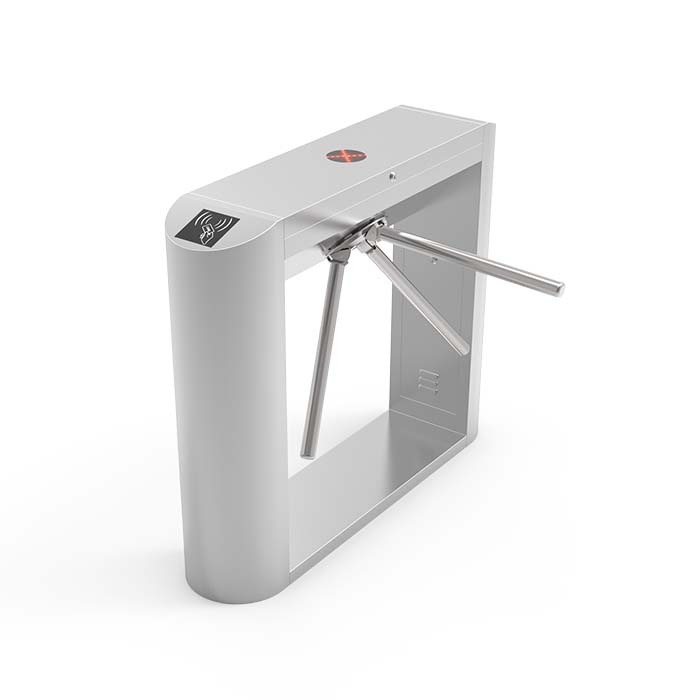

RFID Access Control Tripod Turnstile Gate Vertical Tripod Turnstile Barrier Gate
Parameters
|
Structure parameters |
|
|
Housing material |
304 grade stainless steel |
|
Thickness |
1.2+1.0mm |
|
Surface treatment |
Brushed finish |
|
Technical parameters |
|
|
Size |
1200x280x980mm |
|
Lane width |
600mm |
|
Passing speed |
35--50 people/min |
|
Open/close speed |
0.2sec |
|
Weight |
70KG |
|
Turning angle |
120 degree |
|
MCBF |
5.000.000 times |
|
Basic Function |
Basic Function |
|
Rotating directional |
Single way or Bi-directional adjustable |
|
Noise |
<55db |
|
Operating temperature |
-15 to 70℃ |
|
Relative humidity |
5% to 95% |
|
Package |
Carton box inside. Wooden case outside |
|
Electronic parameters |
|
|
Power supply |
110-220V/AC, 50/60HZ |
|
Rated power |
100W |
|
Input signal |
Dry contact |
|
Driving motor |
Solenoid |
|
Mainboard |
Independent development patent mainboard |
