Name: Security Access Control Electronic Turnstile High Speed Flap Barrier Gate
Brand: Security Access Control Electronic Turnstile High Speed Flap Barrier Gate
SKU: Y248
Price: 1 USD
Availability: InStock
Rating: 4.6 (144 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: Y248

Size: 1200x280x980mm

Pass Width: 550mm

Operating Time: 0.2 S

Pass Rate: 35-40 Persons/min

Housing Material: 1.2mm SUS304 Hairline 400#

Drive Unit: Brushed Motor+Germany Belt

Infrared Sensor: 4 Pairs

Application: Security Access Control Management

Warranty: 1 Year

Basic Infomation

Model Number: Y248

Payment & Shipping Terms

Packaging Details: Seaworthy wooden case+ Foam

Supply Ability: 1000 Piece/Pieces per Month

Product Description

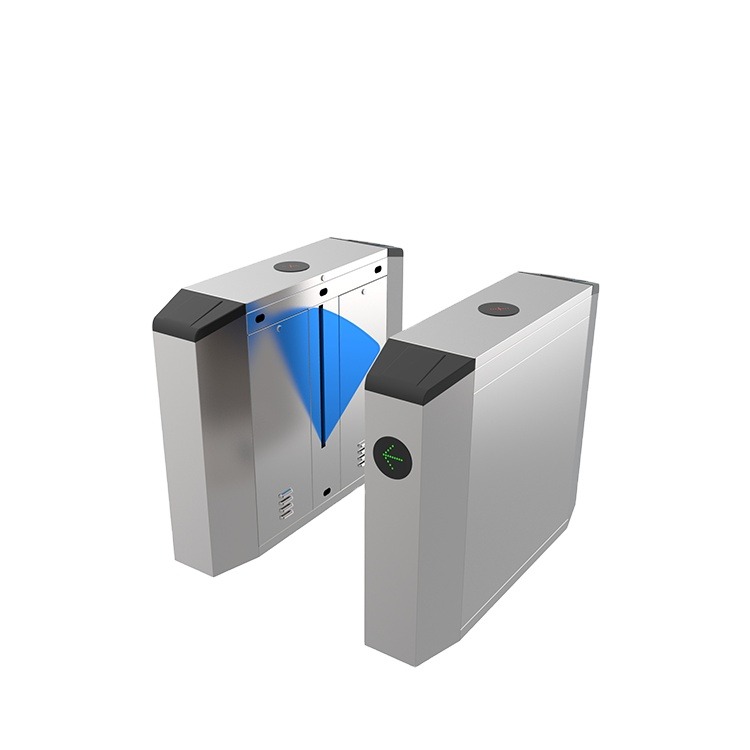

Automatic Access Control Electronic Turnstile High Speed Flap Barrier Gate for School Stadium

The access control RFID system, face recognition, fingerprint, bar code or time attendance reader can easily integrated into flap barrier gate Y248, which is an ideal solution for metro station, stadium, factory and commercial building. The flap turnstile gates are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the flap barriers entrance security gate.

Data Sheet

Size	1200x280x980mm
Material	1.2mm SUS304 Hairline 400
Pass Width	550mm
Passage direction	Single directional/Bi-directional
Pass rate	30-35 persons/minute
Operating time	0.2 seconds
Power input	AC100-240V,50/60HZ
Working humidity	30%~95%
Working temperature	-40℃~+70℃
Communication interface	RS485, Dry contact
Mechanism	Brushed Motor+Germany Belt
Infrared sensor	4 pairs
MCBF	5,000,000 Cycles
Application	Bus station, Factories, Toilets, Library, etc

Case Picture

Company Information

TURBOO Automation Co. LTD is a high-tech enterprise, which specializes in turnstile gates since 2006. It is TOP 3 manufacturer of automatic flap barrier gate, swing barrier gate with access control system in China.
We have our own factory 20000 square meters in Shenzhen city, nearly 500 square meters laboratory, 400 square meters showroom. We have more than 250 employees, including 50+ personnels in R & D department. There are more 150+ patents on technical & design. It ensures Turboo to provide high quality turnstile barrier gates and good maintain service.

Certification

Buyer Feedback

Our Services

FAQ

1. How about the quality of your products? We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.

2. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period? One-year guarantee & Life-time technology support.

Security Access Control Electronic Turnstile High Speed Flap Barrier Gate

Data Sheet

Case Picture

Company Information

FAQ
