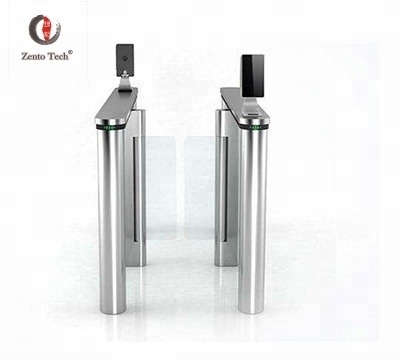

This Speed Gates carries a 2 years warranty and durable maintenance and repair support.
Framework | 304 Stainless Steel | ||||
Dimensions | 1500*150*1020mm | ||||
passage width | 550-600mm | ||||
1. Arm material: | 10mm Acrylic | ||||
LED indicating light | One | ||||
MCBF | 5,000,000 Cycles | ||||
Rated power | 120W | ||||
Operating temperature | -25℃ ~ +60℃, RH ≤90% | ||||
Related humidity | ≥90%RH | ||||
Comunication Interface | RS485,distance ≤1200m | ||||
Power supply | AC 220V/110V ±10% 50/60MHZ (optional) | ||||
OpeningTransit speed: | 75-80 persons per minute | ||||
Passage direction | Single directional/Bi-directional | ||||
It has the function of fault self-check and alarm prompt, which is convenient for users to maintain and use.
It can be connected with any control signal or button and can be output by any control device to realize one-way and two-way control.
The one-way and two-way free passage can be set arbitrarily.
When the equipment is powered on or restarted, it has the function of fault self-checking, which is convenient for users to
maintain and use.
High-intensity traffic light status indication. If someone is following, the gate will automatically start reverse thrust locking
and give an alarm. Connect the fire alarm signal.
We have our own access control software, stable system, and attendance function.Other Models
