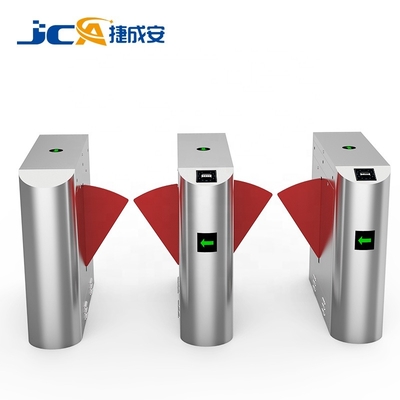

Auto Gate ID Card Reader and Face Recognition Automatic Security Access Control Flap Barrier Turnstile Door
Features:
1.Problem self-recovery and corrective measure ability, convenient maintain and adjus
2.Motherboard with high clean sound read chips which could broadcast in light of user’s requirment
3.Human base model indication function, real time displaying, improve the passing rate and convenient maintain
4.Automatic counting indicating passenger’s number
5.Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time
6.Anti pinch function with UPS to satisfy firefighter requires, ensure user’s safe
7.Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
8.Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
9.Super combination capacity, adjustable model on site , adjustable speed of barrier slide ,Open signal with memory or with out set function
|
Technical parameters |
|||
|
Power voltage |
AC220±10%,50Hz |
Drive voltage |
DC24V 20W |
|
Dimension (Customized Optional) |
1200*300*980m |
Communication port |
RS485 |
|
(Operation condition) |
-30°C~+70°C |
Structure |
Frame or 304 Stainless steel cover |
|
Relative humidity |
no more than 95%,None-condensation |
Open direction |
Single and Double(optional) |
|
Input signal |
12v DC level or 12v pulse>100ms |
Gate opening and closing time |
0.6s |
|
Working Current |
no more than 2000mA |
IP Degree |
IP43 |
|
Length of the bar |
260mm |
Width of passage |
no more than 600mm |
|
Pass speed |
less than 30 person/minutes |
|
|
WHY CHOOSE US?
Q:1.What’s the different between Single core and double core?
A:Flap gates: Single core only with one retractable Flap bar, Double core with two retractable flap bar on both side.
Swing gates: single core is one side with Swing bar, Double core with two swing bar on both side.
Q:2.Can we connect your access control system to the Original system?
A:Yes, we can provide SDK development or Software Data base connection port.
Q:3.Can your barrier gates using at outdoor, and can it waterproof?
A:Yes, the barrier gates with the design for waterproof.
Q:4.Do you have CE,ROHS,FCC,ISO9001 certification?
A:Yes, we have testing report and the certification, and also can send you the copy one with the goods.
Q:5.How we install the barrier gate? Is it easy to install the gates?
A:Yes,its easy to install the gates, we have do most of the jobs before send the gates to you. You just need use screw to fix the gates, and connect the power cable and the internet cable.
