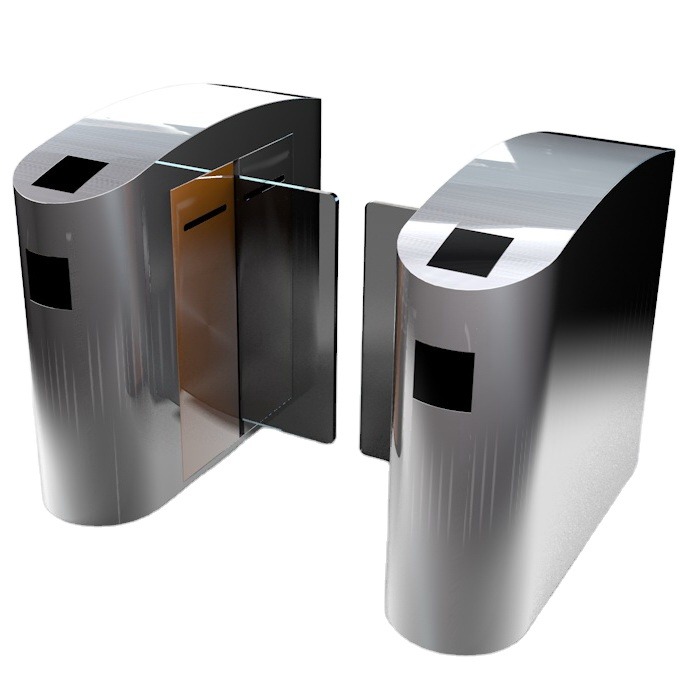

With respect to its ruggedness what sets HZ Security Sliding Barrier turnstiles apart can be summed up in one word; quality. The security industry’s most durable MTBF ratings by utilizing marine grade stainless steel and brushless motor assemblies. The turnstiles are complimented with state-of-the-art controller technology with optional biometrics. Add to the high quality offering the most generous product warranties and you can understand why HZ Security is the fastest growing turnstile manufacturer in the USA.
Product Features
* 304/316 stainless steel
* Brush motor
| HZ-SLBS01-SM | single movement sliding barrier |
| HZ-SLBS01-DM | double movement sliding barrier |
| BASIC PARAMETERS | |
| Finish | 304/316 stainless steel frame, acrylic flaps |
| Safety | fail safe (free exit/entry) |
| Capacity |
40 to 50 persons per minute (free egress) 20 to 30 persons per minute (access controlled) |
| Mechanical operating mode | full automatic |
| Motor type | 24Vdc brush motor |
| Direction | single or bi-directional |
| Controlled operating mode | free entry/exit, controlled entry/exit, no entry/exit, or any combination. |
| Opening/closing time | 1 second |
| Operating time after power on | 10 seconds full automatic |
| MCBF (mean cycles between failure) | more than 3 million |
| Indicator lights |
LED directional arrow, green LED "X" no pass, red |
| Controls | dry contact/+12Vdc level or pulse input signal for entry and exit |
| Tailgating detection | yes |
| Crawling detection | yes |
| Wrong way detection | yes |
| Battery back-up option | yes |
| Remote control | yes (optional) |
| ELECTRICAL | |
| Operating voltage | 110Vac/220Vac (±10%) |
| Power consumption | 24W |
| ENVIRONMENTAL | |
| Operating environment | indoor |
| Operating temperature | 14°F to 122°F [-10°C to 50°C] |
| Storage temperature | -4°F to 140°F [-20°C to 60°C] |
| Operating humidity | 20% to 95% (non-condensing) |
| Storage humidity | 20% to 95% (non-condensing) |
| Ingress protection | IP54 |
| PHYSICAL CHARACTERISTICS | |
| Standard unit size |
55"(D) x 13.75"(W) x 47.25"(H) 139.8cm(D) x 35cm(W) x 119.9cm(H) |
| Flap length | 9.75" to 11.75" [24.8cm to 29.9cm] |
| Weight |
176 lbs [79.8kg] for "-SM" type 220 lbs [99.8kg] for "-DM" type |
| Enamel color | black, gold, bronze |
| Flap material | acrylic (standard), tempered glass (optional) |
Packaging: Heavy Duty Carton
Packaging Dimensions:154.5*30*110cm
Gross weight: 80KG
Shipping method: By sea suggested
