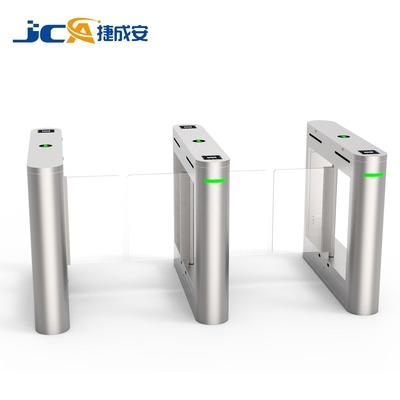

product features:
1.Barriers made from stainless steel, acrylic glass, etc; Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
2.Automatic counting indicating passenger’s number.
3.Human base model indication function, real time displaying, improve the passing rate and convenient maintain
4.Anti pinch function, barriers auto open when power shut, insure user safety.
5. Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
6.Super combination capacity, adjustable model on site
7.Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators
8.Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
9.Turned up-coverage is water-proof and easy maintain .
10.Open direction adjustable even though power off
|
Technical parameters |
|||
|
Power voltage |
AC220±10%,50Hz |
Open angle |
90° |
|
Drive voltage |
AC12V+AC18V |
Pass speed |
less than 30 person/minutes |
|
(Operation condition) |
-30°C~+70°C |
Structure |
Frame or 304 Stainless steel cover |
|
Relative humidity |
None-condensation |
Open direction |
Single and Double(optional) |
|
Input signal |
12v DC level or 12v pulse>100ms |
Install place |
Outdoor and indoor |
|
Working Current |
less than 2000mA |
IP Degree |
IP43 |
|
Length of the bar |
350mm |
Width of passage |
750mm |
WHY CHOOSE US?
Q:1.What’s the different between Single core and double core?
A:Flap gates: Single core only with one retractable Flap bar, Double core with two retractable flap bar on both side.
Swing gates: single core is one side with Swing bar, Double core with two swing bar on both side.
Q:2.Can we connect your access control system to the Original system?
A:Yes, we can provide SDK development or Software Data base connection port.
Q:3.Can your barrier gates using at outdoor, and can it waterproof?
A:Yes, the barrier gates with the design for waterproof.
Q:4.Do you have CE,ROHS,FCC,ISO9001 certification?
A:Yes, we have testing report and the certification, and also can send you the copy one with the goods.
Q:5.How we install the barrier gate? Is it easy to install the gates?
A:Yes,its easy to install the gates, we have do most of the jobs before send the gates to you. You just need use screw to fix the gates, and connect the power cable and the internet cable.
