Home /Products/Automatic Turnstile Gate/304 Stainless Steel TGW-SG018 Lane Turnstile Entrance Security Fast Speed ​​Automatic Swing Gate Turnstile

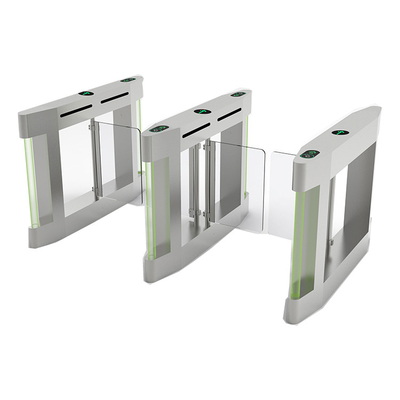

304 Stainless Steel TGW-SG018 Lane Turnstile Entrance Security Fast Speed ​​Automatic Swing Gate Turnstile

1 Set
MOQ
$450.00(>=1 Sets)
Price
304 Stainless Steel TGW-SG018 Lane Turnstile Entrance Security Fast Speed ​​Automatic Swing Gate Turnstile
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TGW-SG018
Product Name: Swing Gate Turnstile
Cabinet Material: 304 Stainless Steel
Dimensions: 1400*180*980mm
Weight: 80KG
Material Thickness: 1.5mm
Infrared Sensor: 4Pairs
Direction: Bi-directional
Communication Interface: TCP/IP, Customizable, RS232, RS485,
Power Rate: 90W
Power Supply: AC 220V/110V ±10% 50/60MHZ (optional)
Basic Infomation
Model Number: TGW-SG018
Payment & Shipping Terms
Packaging Details: The full height turnstile gate is wrapped with waterproof film and then is will be packaged in a wooden box. TGW-SG018 Speed Lane Turnstile Entrance Security Automatic Fast Speed Swing Gate Turnstile
Supply Ability: 50 Set/Sets per Week swing gate turnstile
Product Description
Product Information
Product Name
TGW-SG018 Speed Lane Turnstile Entrance Security Automatic Fast Speed Swing Gate Turnstile
Cabinet Material
304 Stainless Steel
Dimensions
1400*180*980mm
Motor Type
Single motor
Weight
80KG
Arm Length
≤450mm
Passage Width
≤700mm
Opening Signal
Relay
Material Thickness
1.5mm
Card-reading Window
Two
Infrared sensor
4Pairs
Protection function
illegal intrusion alarm, trailing alarm; mechanical + infrared sensor + circuit control triple anti-pinch and anti-bump
Direction
Bi-directional
Service Life
5million times
Operating Temperature
-30℃ ~ +60℃
Related Humidity
≤90%RH
Communication Interface
TCP/IP, Customizable, RS232, RS485,
Power Rate
90W
Power Supply
AC 220V/110V ±10% 50/60MHZ (optional)
Opening Speed
30-45persons per minute
Product Display
Related Products
Product Details
Company Profile
Shenzhen TGW Technology Co.,Ltd founded in 2001 which is the leading access control solution provider for Intellegience parking system,Pedestrian turnstile gate and Face recognition system.
Quick response and Top oral english communication skill to customers.
A team of 20 years of R&D experience focused on system development.
Factory owned 120 workers,2000 square meters for manufacture.
Customer Praise
Packaging & Shipping
FAQ
Q: Did your system have software interface? A: Yes. We have our own management software. Q: How does this system link to other system? A: Equipment could link to others by TCP/IP. Q:Does this combo can add extra access control method? A: Yes,we can extend card reader,fingerprint reader and other method to connect wire with face recognition terminal. Q: What will happened if power was cut off? A: Once cut off,the turnstile gates arm would be drop off,it can go through without control.
